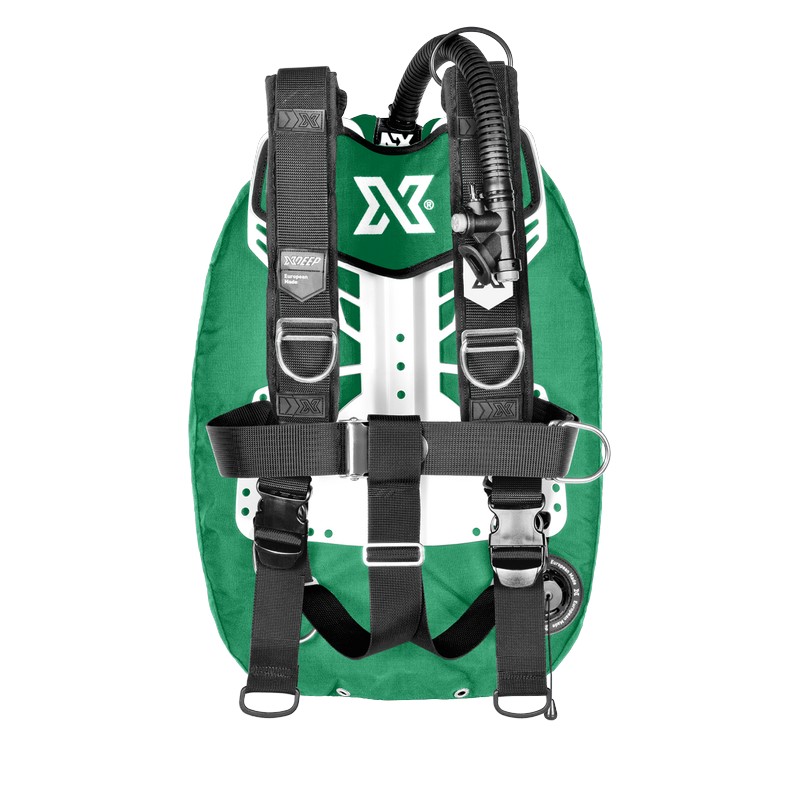

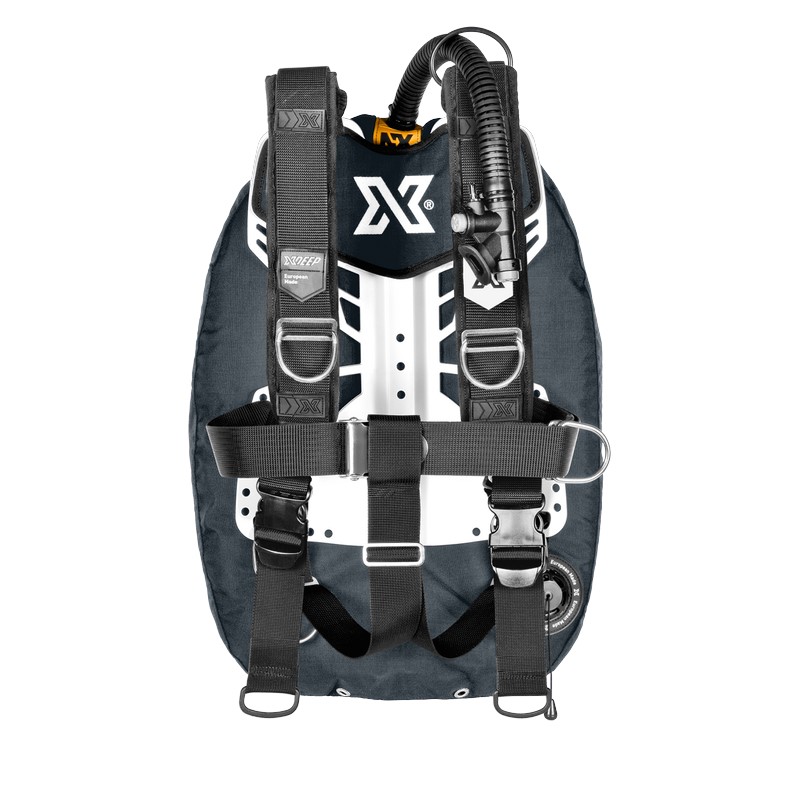

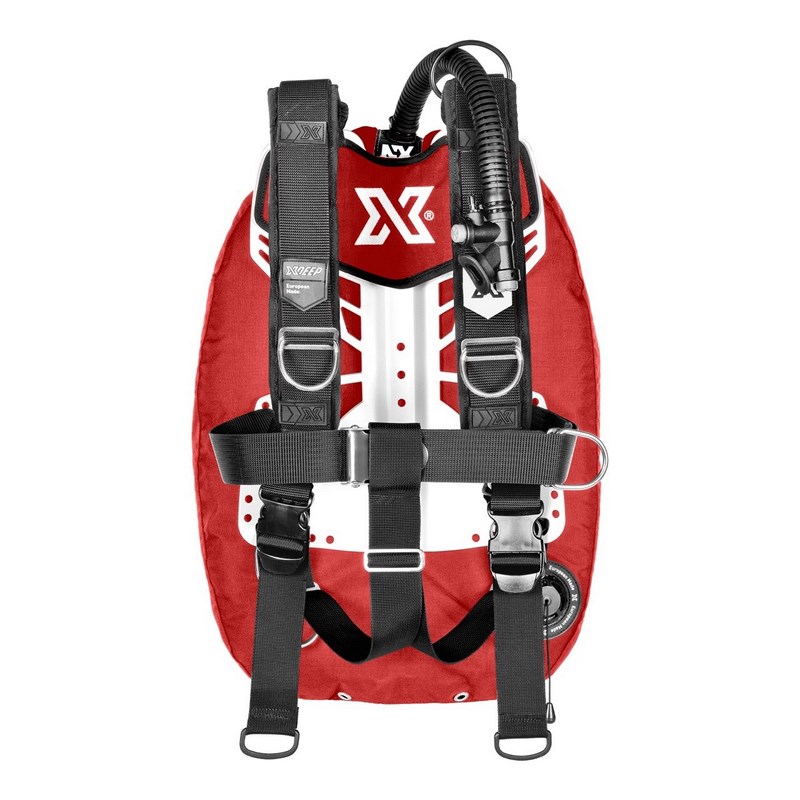

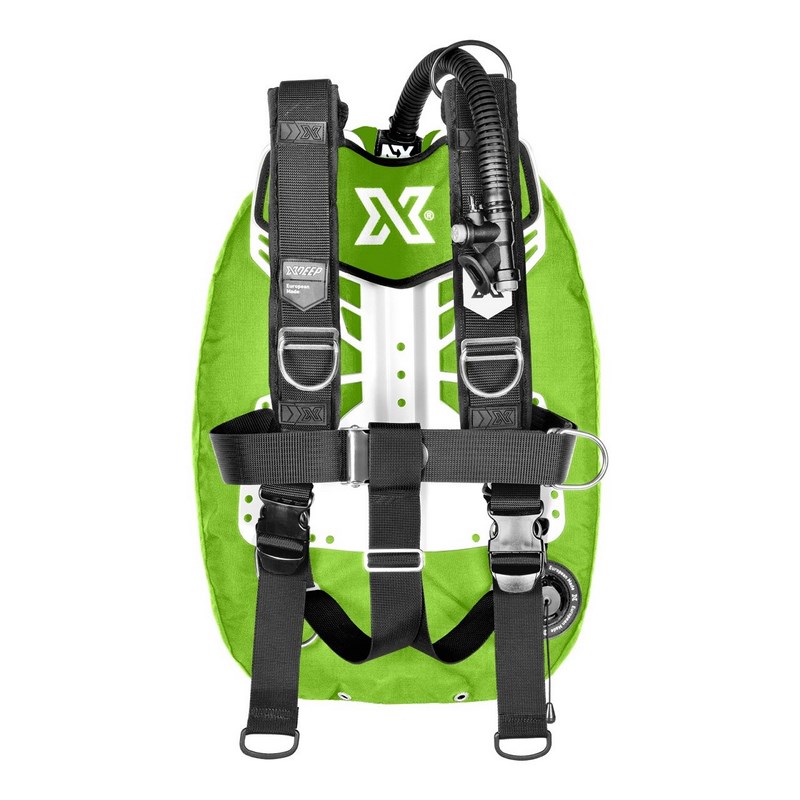

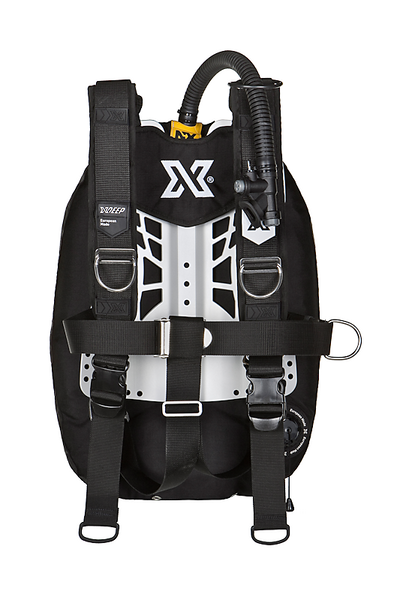

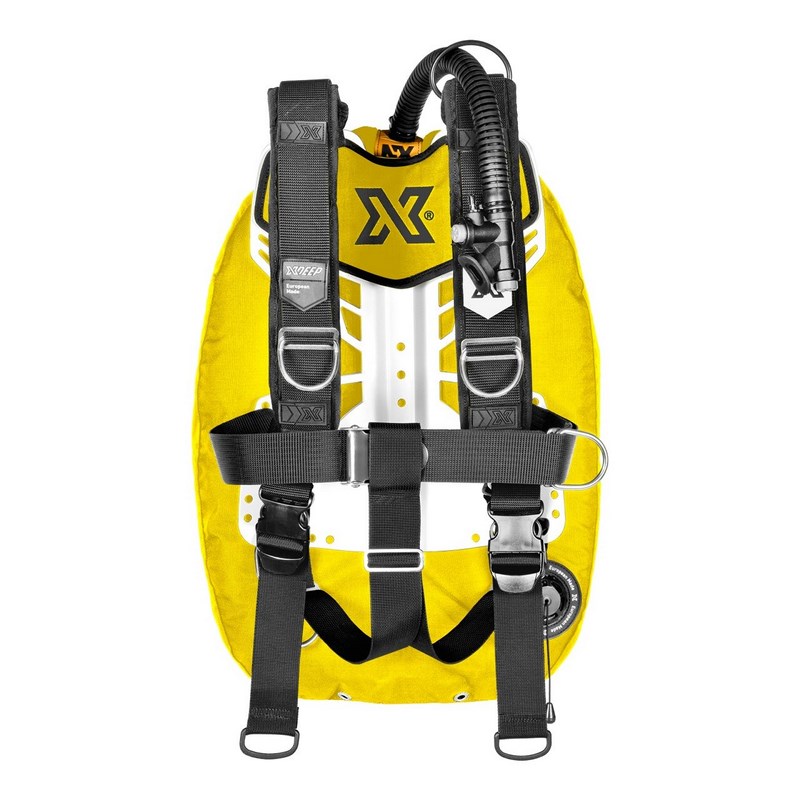

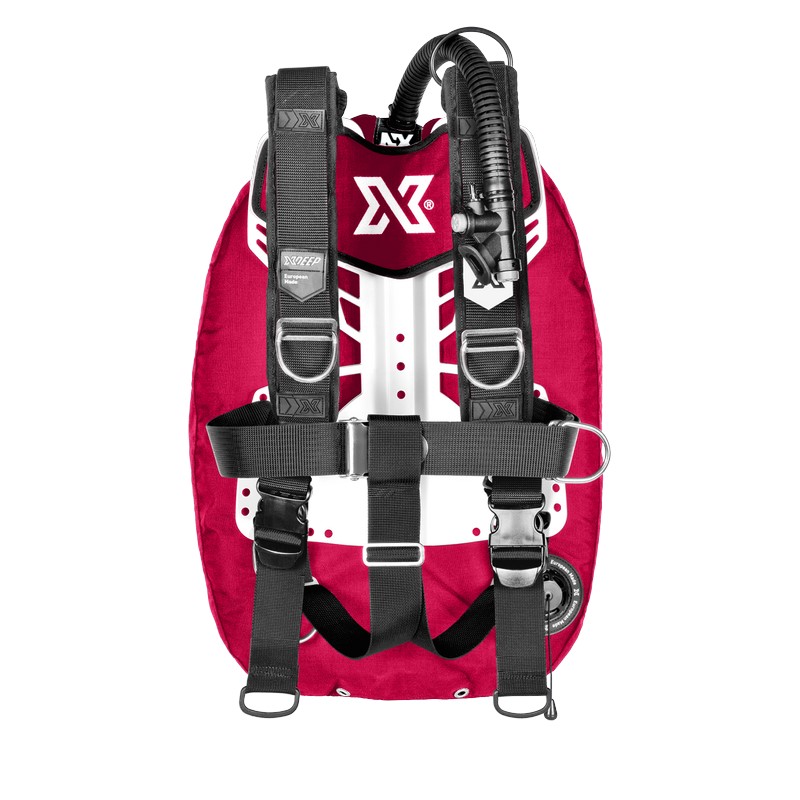

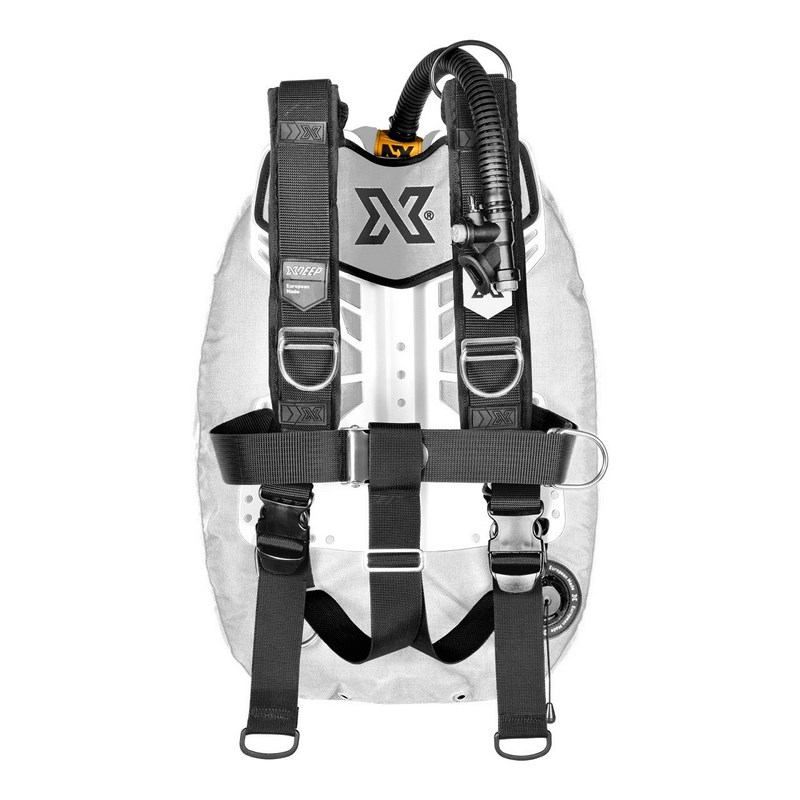

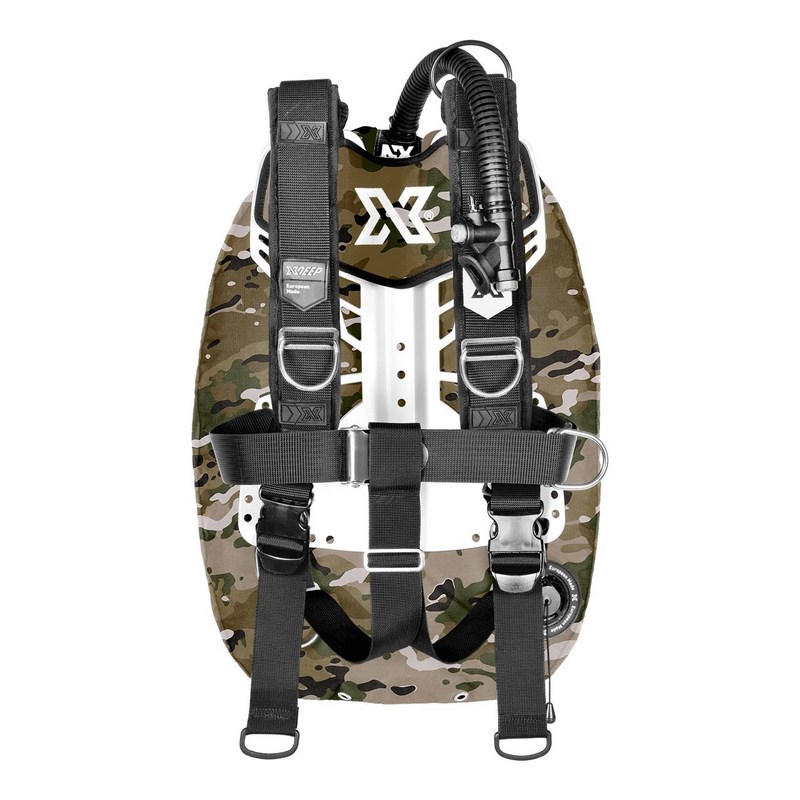

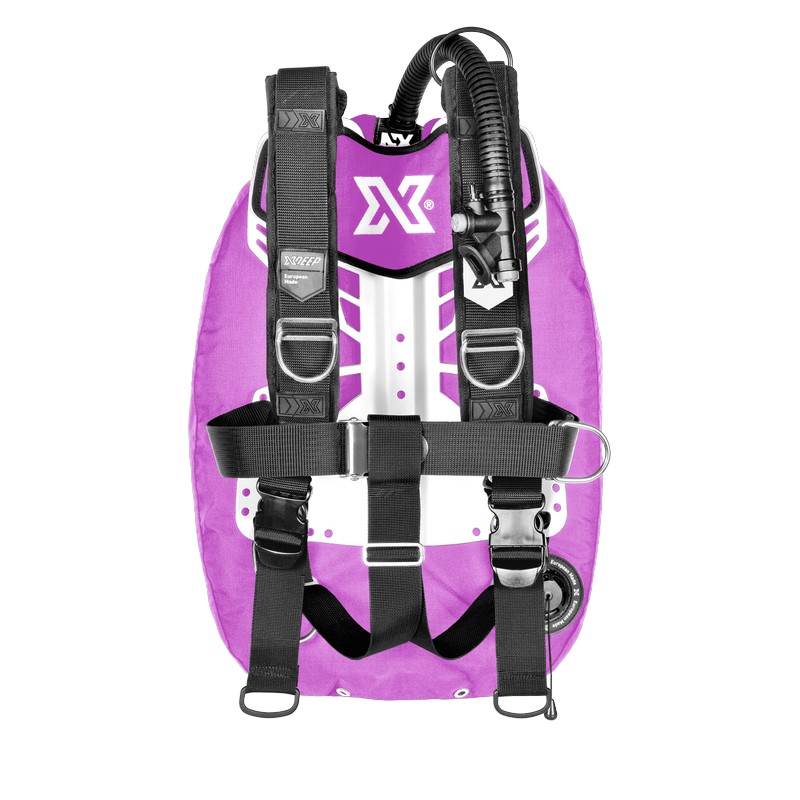

The XDEEP ZEN Deluxe is a backplate and wing system for diving with a single cylinder on your back. It pairs a 19 kg donut wing with an ergonomic backplate, a 3D Mesh pad and the NX harness, which in the Deluxe version comes with quick release buckles and shoulder padding as standard.
Who is the ZEN Deluxe for?
The ZEN suits recreational divers moving from a traditional jacket BCD to a backplate and wing, as well as divers who spend a lot of time on wrecks. The set was also designed specifically with wreck diving in mind: the wing is double walled and kept slim, so there is little to snag on.
It also works well if you dive in a drysuit all year round. You do not need to readjust the harness when you switch between a wetsuit and a drysuit. And if doubles are on your horizon, you can keep the NX harness and simply swap the wing.
If you are more interested in sidemount, read more about sidemount diving or take a look at the XDEEP Stealth 2.0 Classic set.
Wing design and trim
The wing provides 19 kg of lift. Yet it is no bulkier than a typical 17 kg wing, because it is deliberately narrow and stays within the outline of your cylinder. Less volume at the sides means less drag as you fin.
Instead of being mounted on one side, the inflator sits at the centre of the wing. Any air you add spreads evenly across both halves, which helps you hold a flat, horizontal position. Thanks to the compact inflator adapter, the top section of the wing is smaller too. This lifts you higher at the surface while keeping the lift where you need it underwater.
The outer shell is Cordura 1100 dTEX and the inner bladder is nylon 440 dTEX.
Harness and backplate
On the Deluxe version, the NX harness has ITW Nexus quick release buckles on the shoulder straps and 3D Mesh padding fitted as standard. It comes in two sizes: S for divers under 175 cm and L for divers of 175 cm and taller.
With the buckles undone, the shoulder straps give you 20% more length than on a conventional harness. That extra room makes the rig easier to get into and out of, especially if your shoulder mobility is limited. Once you close and tighten the waist buckle, the shoulder straps are drawn down too, so the harness sits snugly against your body.
The backplate is wider at the top, which spreads the load better and takes pressure off your lower back. The 3D Mesh pad between plate and back is soft, does not compress at depth and is neutrally buoyant, so it does not call for extra weight. Rather than a single strap between the legs, the harness uses a V-shaped crotch strap with two D-rings.
Modular weight system
The weight pockets attach directly to the system, close to your cylinder, so you can leave the weight belt at home and keep the load off your hips. The system takes up to 16 kg in total. Pick the pockets that match your diving: S (2x2 kg), M (2x3 kg) or XL (2x6 kg).
Specifications
- Type: backplate and wing for a single back-mounted cylinder
- Lift: 19 kg
- Wing: donut shape, double wall, outer shell Cordura 1100 dTEX, bladder nylon 440 dTEX
- Harness: NX harness with ITW Nexus quick release buckles and 3D Mesh shoulder padding
- Harness size: S (under 175 cm) or L (175 cm and taller)
- Crotch strap: V-shaped with two D-rings
- Backplate pad: 3D Mesh, neutrally buoyant
- Weight system: modular, 0 to 16 kg
- Set weight without pockets: 3.2 to 5.3 kg, depending on the backplate
- Cylinder: single cylinder up to 18 litres, diameter 140 to 240 mm
- Inflator: K-type
- Water temperature: -2 to 40 °C
XDEEP ZEN Deluxe FAQ
What is the difference between the ZEN Standard and the ZEN Deluxe?
It all comes down to the harness. The Standard is adjusted with tri-glides, and quick release buckles and padding are optional extras. The Deluxe ships with both already fitted, which pays off if you gear up and take the rig off often, for example on a dive boat.
Which harness size do I need?
Body height is the guide, with 175 cm as the dividing line between S and L. If you are close to that line, or you dive a drysuit with thick undergarments, it is worth trying the set on first.
Which cylinders fit the ZEN?
The ZEN takes one cylinder of up to 18 litres with a diameter between 140 and 240 mm. That covers most common aluminium and steel tanks, such as a 12 or 15 litre steel cylinder or an aluminium 80 cuft.
Which weight pockets should I choose?
That depends on your exposure suit, your cylinder and your own buoyancy. In a wetsuit in warm water the S pockets are often enough. Diving a drysuit in cold water usually means more lead, so M or XL makes more sense. Always do a weight check in shallow water before your first proper dive.
