Tecline R 2 TEC2 O² set M26

Tecline R2 TEC2 O2 regulator set with M26x2 connection for your oxygen deco stage: R2 TEC O2 first stage, TEC2 O2 second stage, green 100 cm hose and bag.
Manufacturer: Tecline
Delivery date: 1 - 2 weken
€492.16
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

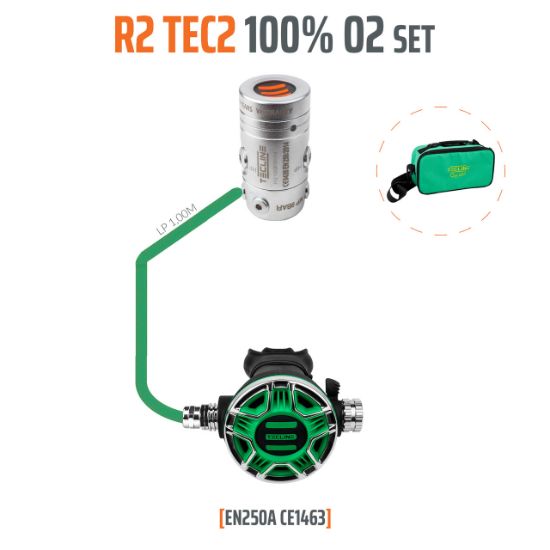

The Tecline R2 TEC2 O2 set M26 is a complete regulator package for your oxygen deco stage. You get an R2 TEC O2 first stage with a DIN M26x2 connection, a green TEC2 O2 second stage, a green braided nylon LP hose of 100 cm and a green O2 bag. The set carries the EN250A marking and is intended as a stage regulator, not as your primary regulator on main cylinders.

What is in the set

This set includes:

  • 2nd stage TEC2 O2 green (REF: T01610-3)
  • 1st stage R2 O2 M26 (REF: T01400-3)
  • bag for regulator GREEN O2 (REF: 85012-3)
  • Regulator hose, flex braided nylon green, standard 3/8 UNF first stage connector, length 100 cm (REF: UR38REGBNGRE100)

First stage specifications

The R2 TEC O2 is a diaphragm first stage rated to 300 bar, with an intermediate pressure of 9.0 bar, 4 LP ports and 2 HP ports, a dry chamber and EN250A approval. The DIN connection is M26x2, the dedicated thread for oxygen and nitrox cylinders.

Second stage specifications

The TEC2 O2 is pneumatically balanced, with venturi and breathing resistance controls, a heat exchanger and Direct Flow System. Weight about 260 g, EN250A. The green colour makes the oxygen regulator easy to spot in your configuration.

Use on an oxygen deco stage

This set belongs on your oxygen deco stage. How deep and how long you use that stage is set by your training and your own gas planning. Always keep the set oxygen clean.

With or without a pressure gauge

This set ships without a pressure gauge, HP swivel and HP hose. The Tecline R2 TEC2 O2 set M26 + SPG adds a 52 mm O2 gauge, an HP swivel Viton and a 20 cm HP hose. Separate O2 gauges and the HP swivel are also available in the shop.

Frequently asked questions

Can I use this set on a normal air cylinder?

No. The M26x2 connection does not fit the standard DIN (G5/8) valve of an air cylinder, and that is deliberate: oxygen-rich cylinders and ordinary air cylinders each have their own connection, so you cannot mix up your regulators by accident. You use the set on a stage cylinder with an M26x2 valve, usually your oxygen or nitrox stage.

Can I add a pressure gauge later?

Yes. The first stage has two HP ports, so you can fit a gauge with an HP hose or HP swivel later on. Just make sure those parts are suitable for oxygen.

How do I service an oxygen regulator?

Have it serviced by a technician who works on oxygen regulators, and keep it oxygen clean. Do not use oils or greases that are not oxygen compatible.

Products specifications
Attribute nameAttribute value
Type ademautomaat:Full set
Type configuratie:Stage
O2 Clean:100% O2 geschikt
Type manometer:230bar
